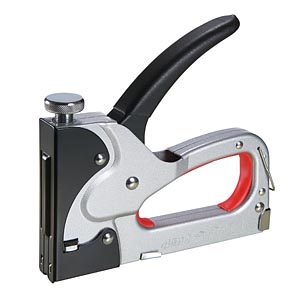

        MODEL NO：VX170
         PROODUCT NAME：4 in 1 Staple Gun Tacker
　





　

 ．

DESCRIPTION：
 With safety impact power control, 4 in 1 stapler gun has a powerful compression spring action to drive staples into
wood, and some thin metals with precision.
With the hardened steel, the easy dynamic squeeze
operation allows for widely use and drive staples into wood.
An excellent tool for all kinds of jobs around the house - upholstery and decoration work, securing frames, and low-voltage (Max 50V) cables, etc.

.................................................................................................................

FEATURE：
 l For fine wire staples 4-14mm, 6.2mm cable staples
   10-14mm, brad nails 10-14mm and pin 14mm.
l Durable all-steel construction
 l Heavy duty for multi-purpose use
 l Quick jam release button
l Impact power adjustment
l Big caliber grip for comfort operation and easy squeeze
 .................................................................................................................

ADDITIONS：
 Standard packing:
l Double blister
 l Packing qty: 6pcs/inner box; 24pcs/carton
 l N.W.: 23.5kgs; G.W.: 24.5kgs; Volume: 1.75cuft
　

......................................................................................................................................................................................................................................

          USED WITH:
　

．

F type (fine wire staples)

Wire: 0.7mm
Leg long: 4-14mm
Crown: 11.3mm

VEMAX 1004F~1014F
ARROW #JT21
ESCO #530

KWB #053
NOVUS #53
 RAPID #53
 ROCAFIX #3
 ..................................................................................................


　

．

U type (cable staples)
Wire: 1.2mm
Leg long: 10-14mm
Crown: 6.2mm

VEMAX U610~U614
ARROW#T-18
NOVUS # S
RAPID #28
ROCAFIX #8
 ..................................................................................................
　
　

．

T type (nail)

Leg long: 10~14mm

 VEMAX T10~T14
ESCO #300
NOVUS #J
ROCAFIX #8
 ..................................................................................................
　
　

．

P type (pin)

Leg long: 14mm

　

......................................................................................................................................................................................................................................
　
