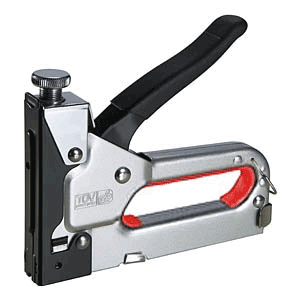

MODEL NO：VX116
PROODUCT NAME：4
Way Staple Gun Tacker |
| |
|
． |
DESCRIPTION：
The unique 4 Way function staple tacker allows
the user
to drive staples, nails & pins into some of the
toughest surfaces. With adjustable impact forced
on this staple
and nail gun is designed for use at home and in
the
workshop. It is ideal for home decoration and
upholstery.
The comfortable grip and easy squeeze operation
allows
for continual use with minimum fatigue.
.................................................................................................................
FEATURE：
l
For fine wire staples 4-14mm, 6.2mm cable
staples
10-12mm, brad nails 10-14mm and pin 14mm.
l
Durable all-steel construction
l
Light duty for multi-purpose use
l
Impact power adjustment
l
Universal magazine
l
Hand-contoured big caliber grip for comfort
operation
and easy squeeze
.................................................................................................................
ADDITIONS：
Standard packing:
l
Double blister
l
Packing qty: 12pcs/inner box; 24pcs/carton
l
N.W.: 17kgs; G.W.: 18kgs; Volume: 1.35cuft |
|
|
|
|
|
...................................................................................................................................................................................................................................... |
USED WITH: |
| |
|
． |
|
F type (fine wire staples)
Wire: 0.7mm
Leg long: 4-14mm
Crown: 11.3mm
VEMAX 1004F~1014F
ARROW #JT21
ESCO #530
KWB #053
NOVUS #53
RAPID
#53
ROCAFIX #3
.................................................................................................. |
|
|
| |
|
|
|
| |
|
． |
|
U type (cable staples)
Wire: 1.2mm
Leg long: 10-14mm
Crown: 6.2mm
VEMAX U610~U612
ARROW#T-18
NOVUS # S
RAPID #28
ROCAFIX #8
.................................................................................................. |
|
|
|
|
| |
|
． |
|
T type (nail)
Leg long: 10~14mm
VEMAX T10~T14
ESCO #300
NOVUS #J
ROCAFIX #8
.................................................................................................. |
|
|
|
|
| |
|
． |
|
P type (pin)
Leg long: 14mm
|
|
|
|
|
|
...................................................................................................................................................................................................................................... |
| |
|
l
