        MODEL NO：VX656

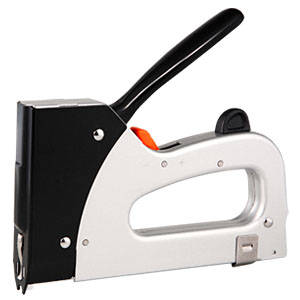

         PROODUCT NAME：Professional Cable Tacker
　


　

 ．
DESCRIPTION：
 Suitable for low voltage cables (maximum 50V) up to
4.5mm or 6mm diameter. Two size cable staples 10-14mm available. Ideal for telephone, TV, alarm, loudspeaker,
security and computer network cables
 .................................................................................................................

FEATURE：
 l For cable staples 10-14mm.
 l Durable all-steel construction
 l Painted finish
 l The patented safety-locking device of handle for easily
    and comfortably locked without any clasp or belt.
 l Max-Normal (-, +) power impact control, maximum
   setting for long staples or hard materials.
 l Recoilless for comfortable operation
 l Wired guide control to drive
 .................................................................................................................

ADDITIONS：
 Standard packing
 l Double blister
 l Packing qty: 6pcs/inner box; 24pcs/carton
 l N.W.: 23.5kgs; G.W.: 24.5kgs; Volume: 1.75cuft
　

......................................................................................................................................................................................................................................

          USED WITH:
　

　

　

　

 ．

U type (cable staples)
Wire: 1.2mm
Leg long: 10-14mm
Crown: 6.2mm~7.6mm

VEMAX U610~U614
RAPID #28
ROCAFIX #8
ARROW #T-18
NOVUS #S

VEMAX U710~U714
RAPID #36
ROCAFIX #7
ARROW #T-25
NOVUS #L
　

......................................................................................................................................................................................................................................
　
