          MODEL NO：VX516

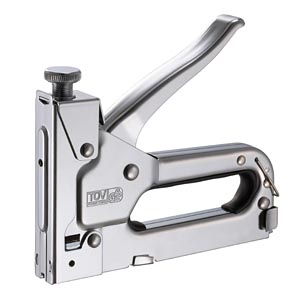

           PROODUCT NAME：4 Way Staple Gun Tacker
　

　

　

　

 ．
DESCRIPTION：
 The unique 4 Way function staple tacker allows the user to drive staples, nails & pins into some of the toughest
surfaces. With adjustable impact forced on this staple and
nail gun is designed for use at home and in the workshop.
It is ideal for home decoration and upholstery.
The comfortable grip and easy squeeze operation allows for continual use with minimum fatigue.
 ................................................................................................................

FEATURE：
 l For flat wire staples 6-14mm, 6.2mm cable staples
  10-12mm, brad nails 10-14mm and pin 14mm.
l Durable all-steel construction
 l Heavy duty for multi-purpose use
 l Impact power adjustment
 l Universal magazine
 l Hand-contoured big caliber grip for comfort operation
   and easy squeeze
 .................................................................................................................

ADDITIONS：
 Standard packing:
l Double blister
 l Packing qty: 12pcs/inner box; 24pcs/carton
 l N.W.: 17kgs; G.W.: 18kgs; Volume: 1.35cuft



......................................................................................................................................................................................................................................

          USED WITH:
　

．

J type (flat wire staples)

Wire: 1.2mm
Leg long: 6-14mm
Crown: 10.6mm
VEMAX 906J~914J

ARROW #T50
ESCO #11
KWB #057
NOVUS #11
RAPID #140
 ..................................................................................................
　 　 　 　
　

．

U type (cable staples)
Wire: 1.2mm
Leg long: 10-12mm
Crown: 6.2mm

VEMAX U610~U612
ARROW#T-18
NOVUS # S
RAPID #28
ROCAFIX #8
 ..................................................................................................
　
　

．

T type (nail)

Leg long: 10~14mm

 VEMAX T10~T14
ESCO #300
NOVUS #J
ROCAFIX #8
 ..................................................................................................
　
　

．

P type (pin)

Leg long: 14mm

　

　

......................................................................................................................................................................................................................................
　
