VEMAX-TOOLS

‧

MODEL NO：VX568

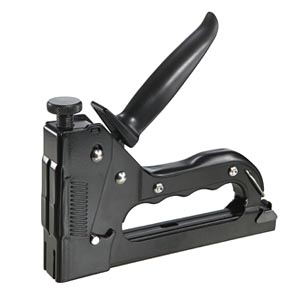

PROODUCT NAME：3 Way Heavy Duty Staple Gun

．

DESCRIPTION：
The 3 in 1 staple gun has a powerful compression spring
action to drive staples into wood with precision.
All steel construction has an attractive painted finish and hardened steel parts. The ergonomically designed grip and easy squeeze operation allows for extensive use with
minimum strain.
................................................................................................................

FEATURE：
l For flat wire staples 6-14mm, brad nails
10-14mm and pin 14mm.
l Durable all-steel construction
l Heavy duty for 3 kinds of staples use
l Clogging release device by pushing knob
l Impact power adjustment
Hand-contoured caliber grip for comfort operation and
easy squeeze
.................................................................................................................

ADDITIONS：
Standard packing:
l Double blister
l Packing qty: 6pcs/inner box; 24pcs/carton
l N.W.: 23kgs; G.W.: 24kgs; Volume: 1.87cuft

......................................................................................................................................................................................................................................

USED WITH:

．

J type (flat wire staples)

Wire: 1.2mm
Leg long: 6-14mm
Crown: 10.6mm
VEMAX 906J~914J

ARROW #T50
ESCO #11
KWB #057
NOVUS #11
RAPID #140
ROCAFIX #4
..................................................................................................

．

T type (nail)

Leg long: 10~14mm

VEMAX T10~T14
ESCO #300
NOVUS #J
ROCAFIX #8

..................................................................................................

．

P type (pin)

Leg long: 14mm
